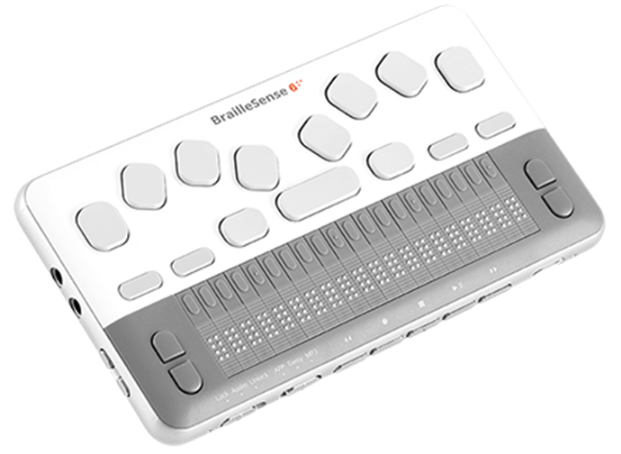

BrailleSense 6 Mini - Controls layout
Problem
You wish to understand the layout of physical controls on the BrailleSense 6 Mini notetaker.
Applies to
- HIMS BrailleSense 6
Resolution
Below information on physical layout for purposes of orientation of new purchaser.

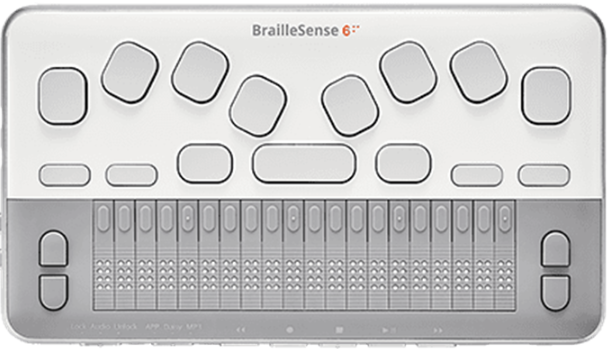

Top panel
(from Left to right)
Perkins braille keys
F1 and F2 keys (left
20 cell display with routing keys above cells
F3 and F4 keys (right)
Pair of scroll keys (left and right side)
F1 and F2 keys (left
20 cell display with routing keys above cells
F3 and F4 keys (right)
Pair of scroll keys (left and right side)

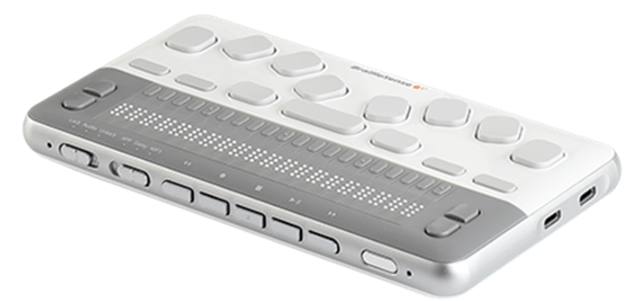

Front panel
(from Left to right)
Lock switch
Media switch
Media transport keys
Power button
Media switch
Media transport keys
Power button
Right side
(from Left to right)
Two USB C ports
Left side
(from Left to right)
Mic/line in
Headphone
Master Volume keys
Headphone
Master Volume keys
Bottom panel
(from Left to right)
Battery compartment
Camera
Camera
Battery compartment in addition to battery houses the SD card.
