About

This document provides description and location of of the BrailleSense 6 keys and controls.

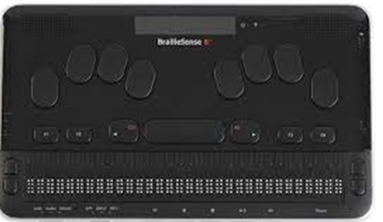

Top Panel (left to right, top to bottom)

  1. Top centre (LCD display)
  2. Middle Perkins Braille keys
  3. Left Function keys F1 and F2
  4. Right function keys F3 and F4
  5. Centre SPACEBAR
  6. Alt key (left of SPACEBAR)
  7. CONTROL (right of spacebar)


Left side panel (front to back)

  1. Volume buttons up/down nearest front panel
  2. Stereo Headphone jack
  3. Stereo mic/line jack
  4. SD card slot

Right side panel (front to back)

  1. USB C port nearest front panel (for monitor and other devices)
  2. USB A port in middle (host port for connecting devices)
  3. USB C port nearest rear panel (for power and PC connection)

Front panel (left to right)

  1. 3 position lock switch (All keys/Top panel/unlocked)
  2. 3 position media mode switch
  3. Media transport keys
  4. Power button

Back panel

  1. USB A port for connecting devices

Perkins key assignments

Dots 1-6 standard Braille keys
Dot 7 = backspace
Dot 8 = ENTER

Function keys assignments

F1 = Start menu
F2 = Application Menu
F3 = TAB
F4 = Escape
