SmartVision 3 - Location of controls

SmartVision 3 - Location of controls

Information

Below description of location of controls for SmartVision 3 mobile phone

Top panel

• Headphone jack
• Power button

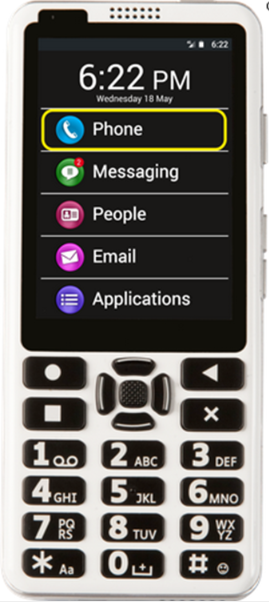

Front panel

• Front camera
• Earpiece
• LCD display
• Menu keys (left)
• 5-day cursor pad with centre OK button (middle)
• Back key, delete key (far right)


Left side panel

• SIM Tray

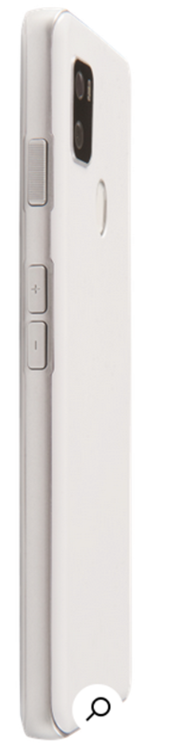

Right side panel

• Google voice key
• Volume up/down buttons

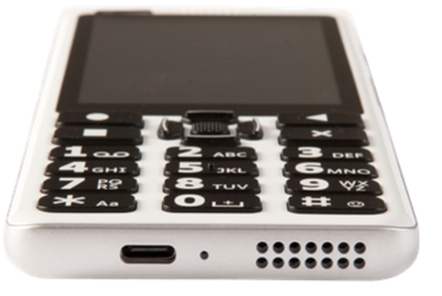

Bottom panel

  • USB charging connector
  • Microphone
  • Speaker

Back panel

• Rear camera
