Problem

A ZoomText customer wishes to change the default full screen magnifier setting.


Applies to

  1. ZoomText

Resolution

ZoomText supports a number of different screen magnification modes.  For some users another mode may suit better depending on need.

  1. Open ZoomText/Fusion window using CONTROL+CAPSLOCK+U or click on the Fusion taskbar button.
  2. Then click on the Magnifier toolbar
  3. Then click the Window button in the toolbar.

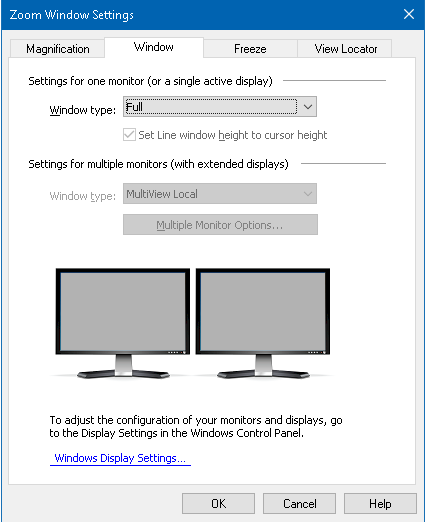

  4. In the next window click the Window Type drop down and set it to any of the following options:


Full
Full screen is the default magnification mode, all of the display area is magnified.

Overlay
Displays a zoom window that lies on top of the normal screen which can be resized by the user.

Lens
Attempts to replicate a magnifying glass.  It displays a mobile lens area within whicih the magnified view can be panned around the screen. zoom window similar to a magnifying glass, the lens will track activity in the focused area of the screen.

Line
Displays a horizontal magnified area similar to a physical bar magnifier.

Docked
This mode splits the screen between magnified and normal screen split either horizontally or vertically.


  1. Then click OK to dismiss the Window.
  2. If the settings are satisfactory click ZoomText/Fusion menu > Configuration > Save As Default, then click Yes button at the overwrite prompt. This last steps ensures the settings are save for the next restart.
